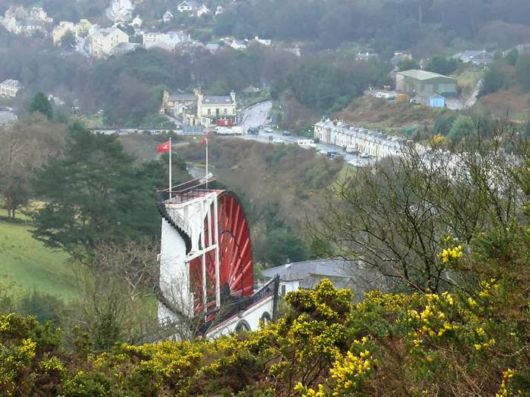

The wheel is water-powered since the Isle of Man does not have a supply of coal but does have an abundance of water.

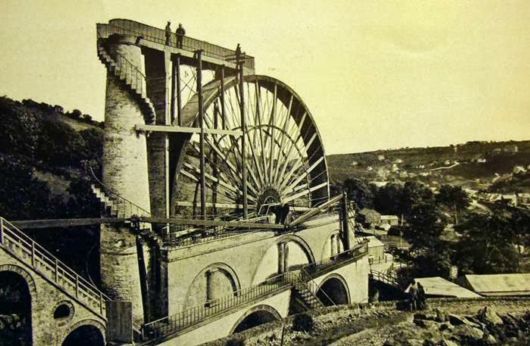

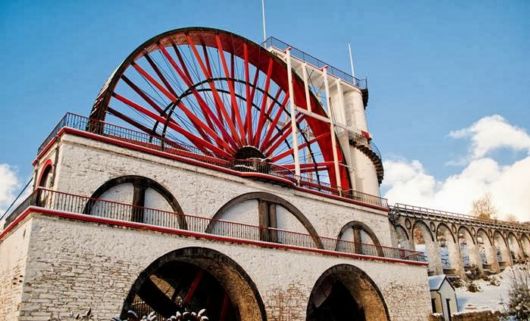

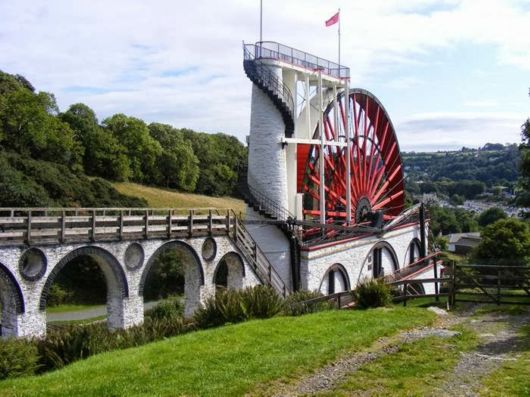

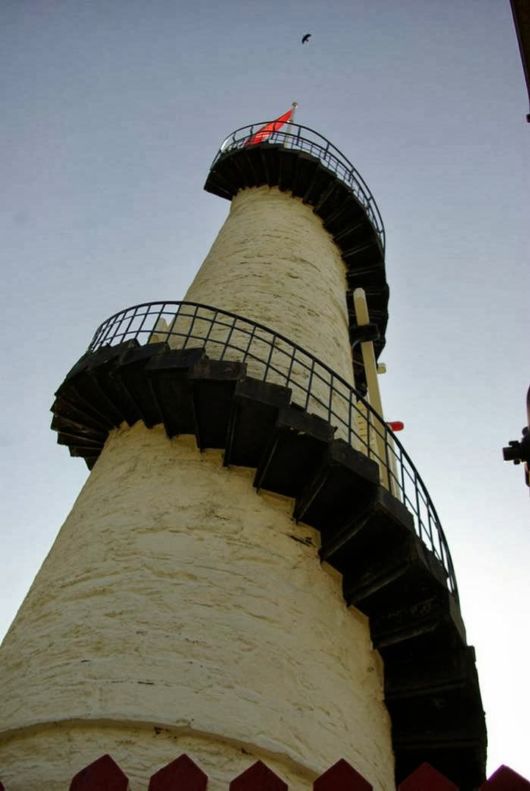

Water from the surrounding area, including the local river, is collected in a cistern which is above the level of the top of the wheel. A closed pipe connects the cistern to the top of the wheel; thus the water flows up the tower without problem. The water falls from the pipe into the buckets (formed from wooden slats on the circumference) and makes the wheel rotate in what is described as the 'reverse' direction. The crank has a throw of 4 feet (1.22 m) and connects to a counterweight and to a very long rod. This rod runs along the rod viaduct to the pumping shaft where the 8 feet (2.44 m) stroke is converted by T-rockers into a pumping action.

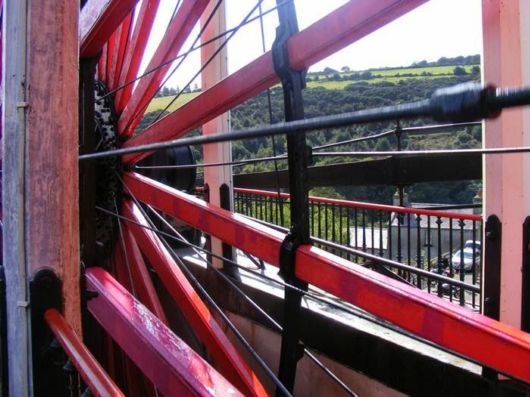

Most of the wheel and rod is made of wood; however, key mechanical parts are metal to provide tension and bearing surfaces. The rod has attached wheels at intervals to permit the stroke's motion with minimal friction.

Dimensions

Diameter, 72 ft 6in.
Circumference, 210 ft 6in.
Width, 6 ft.
Delivery, 250 imperial gallons (1,100 l) of water a minute from the Laxey mines some 200 yards (180 m) away and 1,500 feet (460 m) below ground.

The wheel still operates but does not pump water.q
